Which slide operator for a home gate?

Most home slide gates fit the RSL12UL (to 800 lb) or the CSL24UL (to 1,500 lb).

Which for a heavy or long gate?

HDSL24UL to 3,000 lb and 75 ft; IHSL24UL to 5,500 lb and 90 ft.

Which have battery backup?

The DC models do. The SL3000UL is AC and runs on line power.

Can I open it from my phone?

Yes, with myQ. The CSL24ULWK includes the connectivity kit.

LiftMaster · Authorized dealer

LiftMaster Slide Gate Operators

Every LiftMaster slide gate operator we install

A slide gate operator rolls the gate along a track beside the opening. LiftMaster makes them for every size of gate, from home driveways to industrial entries. Compare them side by side below. Eagle Automatic Gate & Door, an authorized LiftMaster dealer, installs and services every model across the Bay Area.

See all models Ask a specialist

All models

LiftMaster slide gate operators.

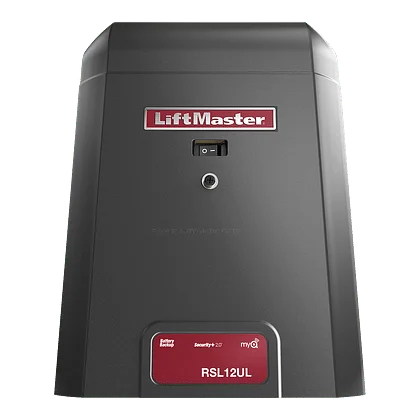

LiftMaster RSL12UL

12VDC Residential / Light Commercial Slide Gate Operator

Max weight: 800 lb
Max length: 25 ft

View RSL12UL

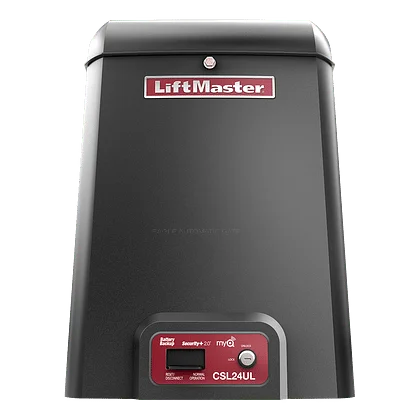

LiftMaster CSL24UL

24VDC High-Traffic Commercial Slide Gate Operator

Max weight: 1,500 lb
Max length: 50 ft

View CSL24UL

LiftMaster CSL24ULWK

24VDC High-Traffic Commercial Slide Gate Operator with myQ Kit

Max weight: 1,500 lb
Max length: 50 ft

View CSL24ULWK

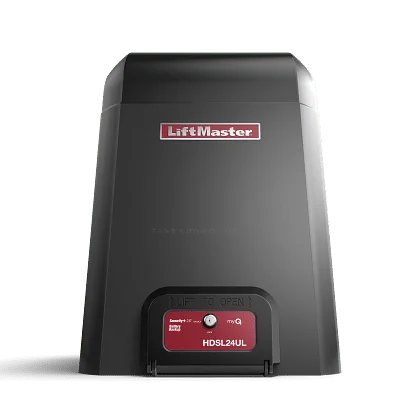

LiftMaster HDSL24UL

24VDC Heavy-Duty Variable Speed Slide Gate Operator

Max weight: 3,000 lb
Max length: 75 ft

View HDSL24UL

LiftMaster INSL24UL

24VDC Continuous Duty Industrial Slide Gate Operator

Max weight: 2,200 lb
Max length: 70 ft

View INSL24UL

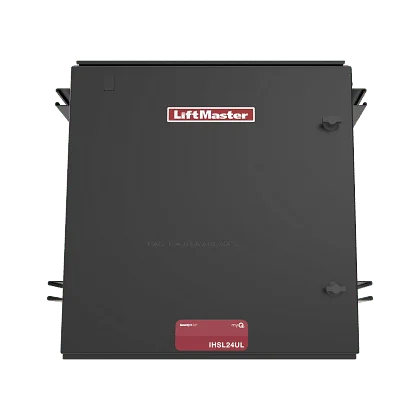

LiftMaster IHSL24UL

24VDC Continuous Duty Industrial Slide Gate Operator

Max weight: 5,500 lb
Max length: 90 ft

View IHSL24UL

LiftMaster SL3000UL

½ and 1 HP AC High-Traffic Commercial Slide Gate Operator

Max weight: 1,000 lb (½ HP) / 2,000 lb (1 HP)
Max length: 50 ft

View SL3000UL

Compare

Compare every slide operator.

Every figure is from LiftMaster’s product pages. “Not listed” means LiftMaster doesn’t state it.

Model	Type	Max weight	Max length	Battery	Solar	Warranty
RSL12UL	12VDC residential / light commercial	800 lb	25 ft	Yes	Yes	3 years
CSL24UL	24VDC high-traffic commercial	1,500 lb	50 ft	Yes	Yes	7 yrs residential, 5 yrs commercial
CSL24ULWK	CSL24UL with myQ connectivity kit	1,500 lb	50 ft	Yes	Yes	7 yrs residential, 5 yrs commercial
HDSL24UL	24VDC heavy-duty, variable speed	3,000 lb	75 ft	Not listed	Not listed	See LiftMaster
INSL24UL	24VDC continuous-duty industrial	2,200 lb	70 ft	Yes	Not listed	See LiftMaster
IHSL24UL	24VDC continuous-duty industrial	5,500 lb	90 ft	Yes	Not listed	See LiftMaster
SL3000UL	AC high-traffic commercial, ½ or 1 HP	1,000 lb (½ HP) / 2,000 lb (1 HP)	50 ft	No (AC)	No (AC)	See LiftMaster

Not sure which fits your gate? Ask a specialist

Quick facts

Slide quick answers.

The questions homeowners ask us most about the Slide, answered in one line each.

Which slide operator for a home gate?: Most home slide gates fit the RSL12UL (to 800 lb) or the CSL24UL (to 1,500 lb).
Which for a heavy or long gate?: HDSL24UL to 3,000 lb and 75 ft; IHSL24UL to 5,500 lb and 90 ft.
Which have battery backup?: The DC models do. The SL3000UL is AC and runs on line power.
Can I open it from my phone?: Yes, with myQ. The CSL24ULWK includes the connectivity kit.

From the published Slide spec sheet and installation manual. Have a different question? Ask a specialist

From our installer

“We’ve installed LiftMaster slide operators on everything from small home gates to 90-foot industrial entries.”

JeffGate Installation Manager, Eagle Automatic Gate & Door

Slide or swing?

Should I get a slide gate or a swing gate?

It mostly comes down to space and slope. A slide gate needs room along the fence for the gate to roll back, about the width of the opening, but no swing room, so it works on short or sloped driveways and handles wind well. A swing gate needs clear space to swing into but no side room, and it often looks more traditional. Call our specialist and we’ll look at your driveway and tell you which fits.

— Jeff, Gate Installation Manager

Straight answers

Slide questions.

Still not sure? Call us and describe what your gate is doing.

Which LiftMaster slide gate operator do I need?+

It depends on the gate’s weight, length and how often it runs. Use the comparison table above, or call us and we’ll size it from your gate on a free visit.

What is the strongest LiftMaster slide gate operator?+

The IHSL24UL, rated for slide gates up to 5,500 lb and 90 ft.

Which slide operators have battery backup?+

The DC models: RSL12UL, CSL24UL, CSL24ULWK, INSL24UL and IHSL24UL. The SL3000UL is AC.

Do LiftMaster gate operators work with myQ?+

Yes. Current LiftMaster gate operators work with myQ Community and myQ Facility, and most can be controlled from the myQ app with a connectivity kit or Internet Gateway.

Are LiftMaster gate operators UL 325 compliant?+

They are tested to UL 325. External monitored entrapment devices, such as photo eyes and safety edges, must be added and tested on every install.

Who installs LiftMaster gate operators in the Bay Area?+

Eagle Automatic Gate & Door is an authorized LiftMaster dealer and installs, replaces and services every model on this page across the Bay Area, starting with a free consultation.

Why Eagle for your Slide

Installed by a LiftMaster dealer.

The right operator is only half the job. How it is mounted, wired and safety-tested decides how long it lasts.

Hundreds of LiftMaster operators installed across the Bay Area
LiftMaster operators and parts in stock
Every install meets UL 325: monitored photo eyes and edges, tested on site
Authorized LiftMaster dealer · CA Lic. #1138855
